Viewing Bridge Job Status and Log

To view the job status and log for a Bridge definition, follow these steps:

1	Select one or more pipeline segments in the Select ROWs window. Click Save to close the window.

2	Click Tools > Bridge to open the Bridge window (Figure 10-56).

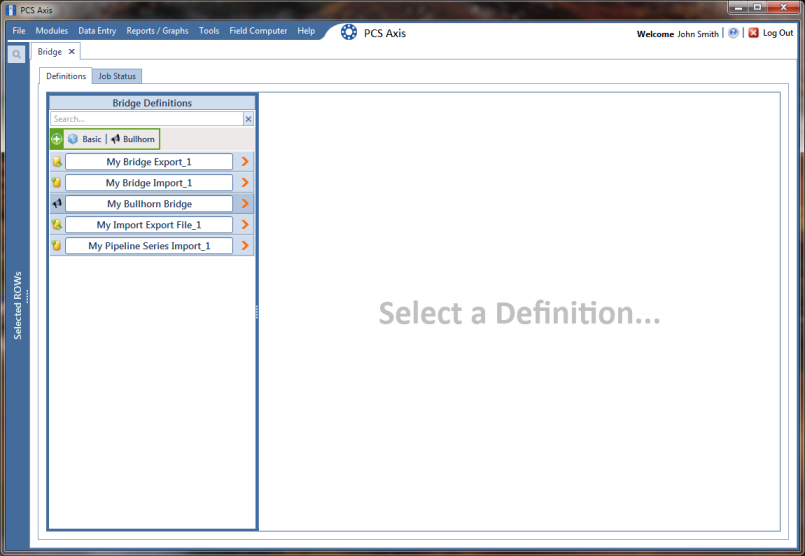

Figure 10-56. Select Definition

3	Click the Job Status tab to open the job status window (Figure 10-57).

4	Select a definition to display status information in the bottom panel of the job status window.

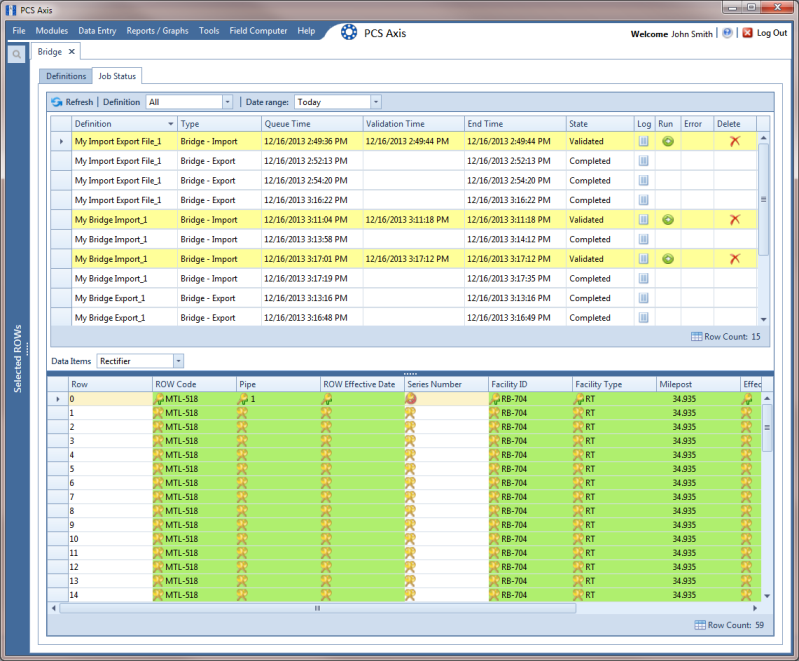

Figure 10-57. Job Status

Note: For a description of the icons and colors used in Job Status, see Icons and Colors Used in Bridge Job Status.

5	If you want to delete prevalidated data that has not posted in the database yet, click Delete to remove the job from the Job Status window (Figure 10-57).

6	Click Log for a selected definition to open a window with detailed information (Figure 10-58).

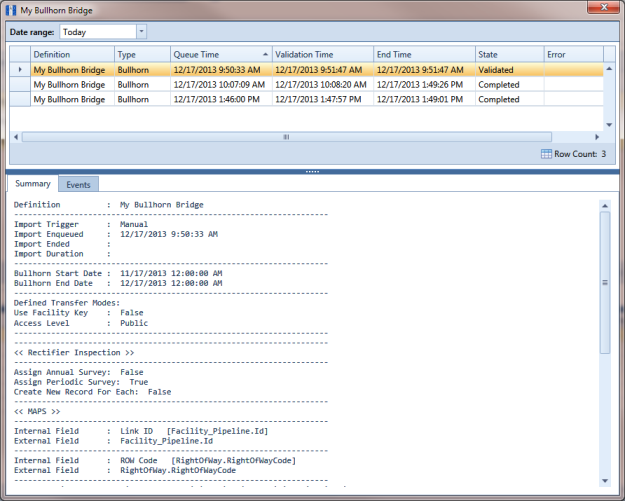

Figure 10-58. Log
