If the message Not Running displays in the Status field of the Job Service Console as shown in the following figure (Figure 11-4), use the procedure in this section to restart the PCS Axis Job Service. PCS Axis Job Service monitors the job queue, initiating jobs as they become available.

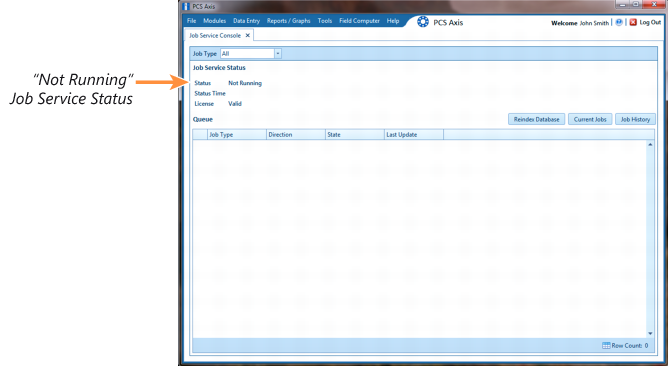

Figure 11-4. Job Service Status
|
1
|
Start PCS Axis Connection Manager and verify connection settings specify the correct server and database as follows:
|
|
a
|
Click the Windows Start button
 and navigate to the program folder labeled PCS Axis 1.6. Select PCS Axis Connection Manager 1.6 to start the program (Figure 11-5). |
|
b
|
Verify the server name is correct in the Server field and the database name is correct in the Database field. If either is incorrect, click
 Select in the Server field to select the correct server or click  Select in the Database field to select the correct database. |
|
c
|
Verify the Connection String field includes the correct server and database name.
|
|
d
|
Click
 Save and then click  Test to verify connection settings. When connection settings are correct, the message Connection successful displays. Click  OK to close the message and then click  Close to exit PCS Axis Connection Manager. |
Important: If connection settings are incorrect, contact your company’s Database Administrator or IT Administrator for the name of the correct server and database. The information will then need to be set in PCS Axis Connection Manager using the steps in this procedure.

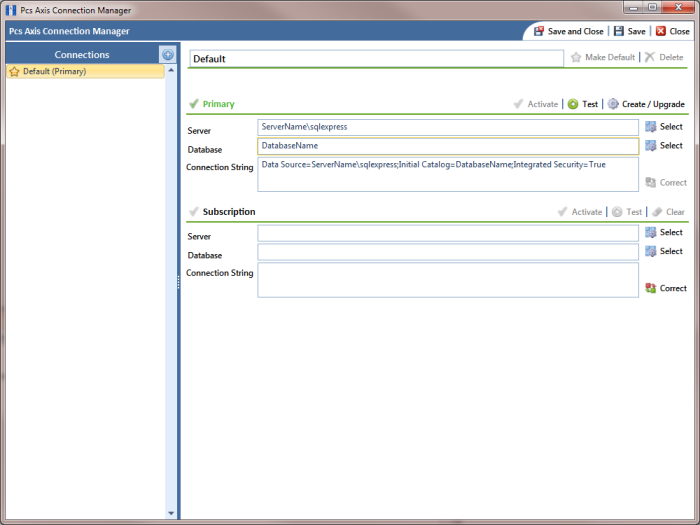

Figure 11-5. PCS Axis Connection Manager
|
2
|
If the PCS Axis database and PCS Axis Job Service are installed on two different network servers, complete the following steps to set up a user account to log on as a service. The user account must be a member of the Axis_Users group and have access to the central database server and PCS Axis database.
|
|
a
|
Click the Windows Start button
 and navigate to Computer. Right-click Computer and select Manage in the shortcut menu to open the Computer Management console (Figure 11-6). |
|
b
|
Double-click Services and Applications in the left pane of the console. Then click Services to display a list of services in the middle pane.
|
Figure 11-6. Computer Management Console
|
c
|
Right-click PCS Axis Job Service 1.6 (Figure 11-8) and select Properties in the shortcut menu to open the Properties dialog box (Figure 11-7).
|
|
d
|
Click the Log On tab and select the option This account. To set up a user account to log on as a service, type the user name and password in the appropriate fields. You can also view a list of appropriate user accounts by clicking Browse > Advanced > Find Now.
|
|
e
|
Click Apply and then OK to close the Properties dialog box and return to the Computer Management console.
|

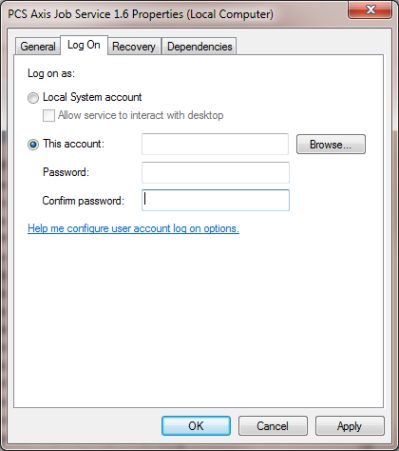

Figure 11-7. PCS Axis Job Service 1.5 Properties
|
3
|
Complete the following steps in the Computer Management console to restart the PCS Axis Job Service:
|
|
a
|
|
b
|
|
c
|
In PCS Axis, verify the message Running displays in the Status field of the Job Service Console (Figure 11-4).
|
Important: If the PCS Axis Job Service does not start, contact PCS Technical Services using the contact information in section titled Technical Support.

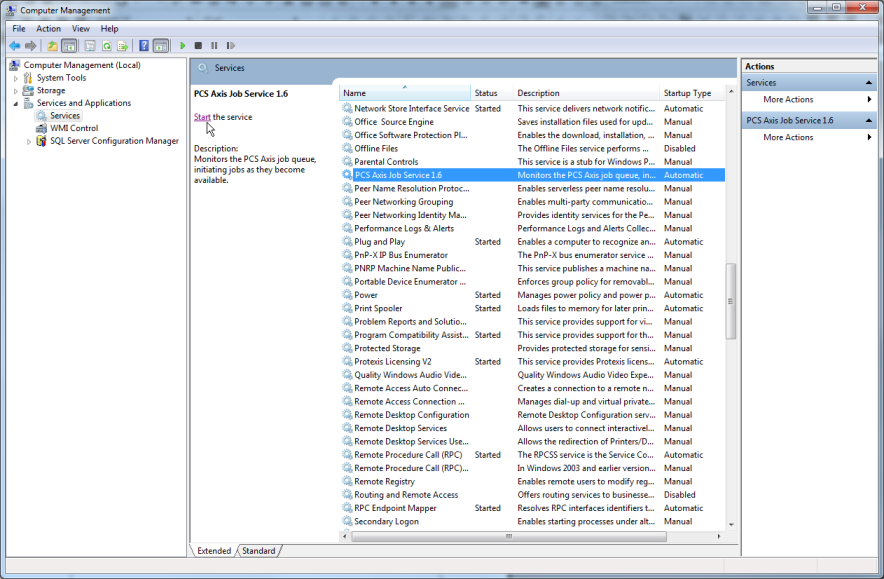

Figure 11-8. Computer Management Console
