Receiving a Facility Survey from the Allegro

Complete the following steps to receive an Allegro PS periodic survey file in PCS Axis:

1	Verify the Allegro is connected to your computer. If needed, refer to the Allegro User Guide for information about how to connect the device.

2	Click Field Computer > Receive to open the Field Computer Receive Data window (Figure 13-17).

3	Click Receive Facility Data, then click the Allegro option.

4	Click Retrieve File(s) to view a list of periodic survey files available for selection.

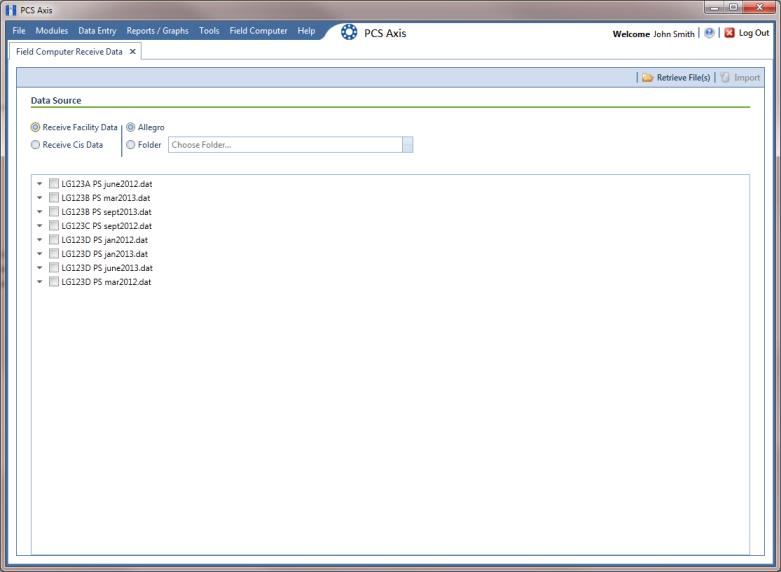

Figure 13-17. Field Computer Receive

5	Choose survey files you want to transfer from the Allegro. Click the check box for one or more survey files in the list of files available for selection (Figure 13-18).

6	Click the toggle arrow for a selected survey file to view the following options for assigning Allegro survey data to a PCS Axis survey folder:

a	Select No Survey Assignments if you do not want to assign Allegro survey data to a survey folder.

b	Select Automatic Assignment and then select one of the following options to have PCS Axis automatically assign Allegro survey data to a survey folder:

•	Assign Survey: Select this option if you want PCS Axis to automatically assign survey data to an annual or multi-year survey folder based on the inspection date of the Allegro survey data.

•	Assign Periodic Survey and Year: Select this option if you want PCS Axis to automatically assign survey data to a periodic survey folder based on the inspection date of the Allegro survey data.

c	Select Manual Assignment and then select one of the following options to manually select a survey folder for assigning Allegro survey data:

•	Survey: Select this option to choose an annual or multi-year survey folder for assigning Allegro survey data. Click the down arrow in the Survey field and select a survey in the selection list.

•

Periodic Survey, Year: Select this option to choose a periodic survey folder and the survey year for assigning Allegro survey data. Click the down arrow in the Periodic Survey field and select a periodic survey folder in the selection list. Then click the down arrow in the Year field and select the survey year.

d	Click Apply to all selected files if you want to apply the selected survey folder option to all selected survey files.

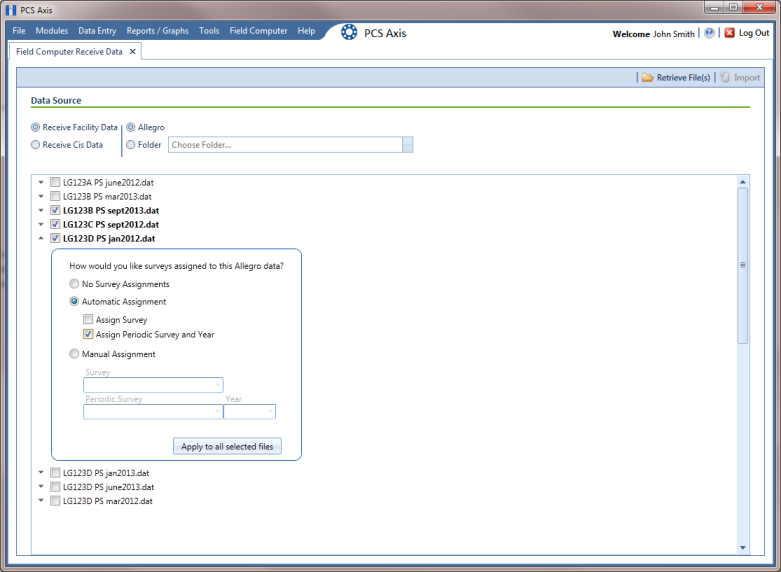

Figure 13-18. Field Computer Receive Data

7	Click Import to import selected survey file(s) in PCS Axis.

The Field Computer Receive Status window displays showing the status of the import process (Figure 13-19).

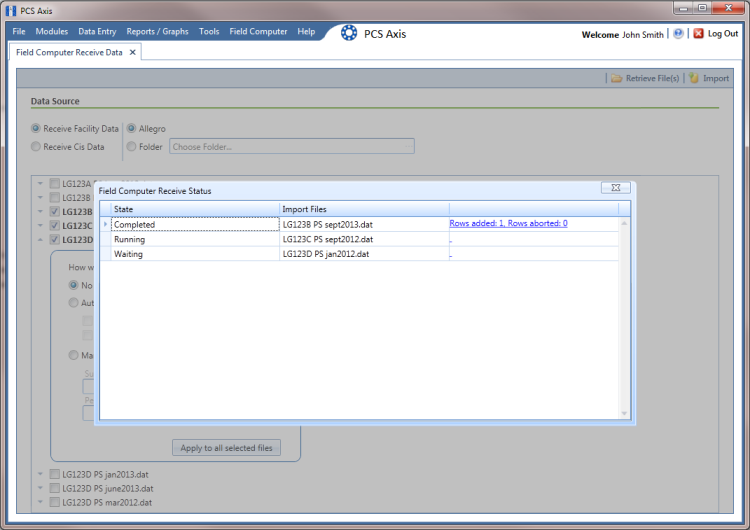

Figure 13-19. Field Computer Receive Status
