Adding a Layout Theme

A layout theme is a group of fields in a grid layout. Adding a new layout theme allows you to choose which fields you want to include in the grid and then save the layout as a theme for later use. The following procedure applies to the grid layout in Field Computer Send.

Complete the following steps:

1	Select one or more pipeline segments in the Select ROWs window. Click Save to close the window (Figure 13-1).

2	Click Field Computer > Send to open the Field Computer Send window.

Complete step 3, 4, or 5 to choose an option for displaying facility records in the grid:

3	To view facility records based on pipeline segment(s) selected in the Select ROWs window, follow these steps:

a	Click the Selected ROWs options.

b	Choose one or more facility types using one of the following options (Figure 13-23):

•	Click the down arrow and select a facility type theme in the selection list, such as [PCS] Rectifier Survey.

•	Click Ad Hoc Theme and then click the check box for each facility type you want to view in the grid.

•	Click the Select All button to view all facility types in the grid.

c	Click Apply to update the grid and then continue with step 6.

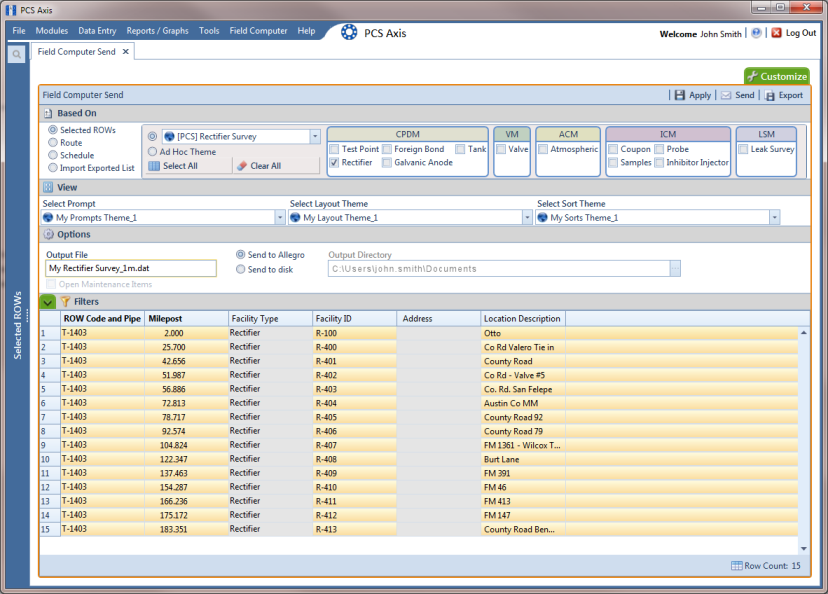

Figure 13-23. Field Computer Send Based on Selected ROWs

4	To view facility records based on a route:

a	Click the Route option and then select a route in the selection box (Figure 13-24).

b	Click Apply to update the grid and then continue with step 6.

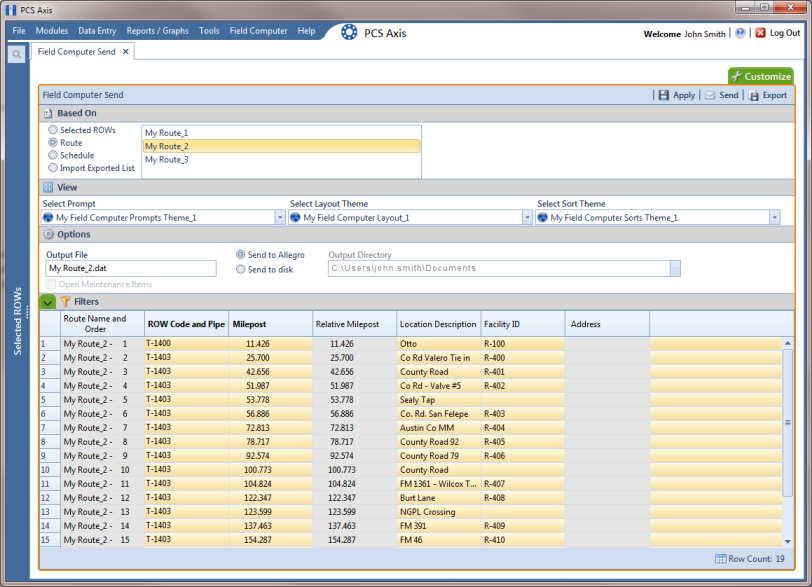

Figure 13-24. Field Computer Send Based on Route

5	To view facility records based on a schedule, follow these steps:

a	Click the Schedule option. Then click the down arrow in the field Select Schedule Definition and choose a schedule definition in the selection list

Complete step "b" to enter a schedule date range or step "c" to set a schedule date range using dynamic dates:

b	Type a start date in the Start Date field and an end date in the End Date field.

c	To set a schedule date range using dynamic start and end dates, follow these steps (Figure 13-25):

1)	Click the Start Date calculator to open dynamic start date fields. Set properties in these fields in the following manner:

•	Click the down arrow in the Start Date field and select one of the following options: Today, Beginning Of Month, End Of Month, Beginning of Year, or End Of Year.

•	In the remaining two fields, type an offset value in the first field and then click the down arrow in the second field and select one of the following options: Day(s), Month(s), or Year(s). Click the pencil button to close dynamic start date fields.

2)	Click the End Date calculator to open dynamic end date fields. Set properties in these fields in the following manner:

•	Click the down arrow in the End Date field and select one of the following options: Beginning Of Month, End Of Month, Beginning of Year, or End Of Year.

•	In the remaining two fields, type an offset value in the first field and then click the down arrow in the second field and select one of the following options: Day(s), Month(s), or Year(s). Click the pencil button to close dynamic end date fields.

3)	Click Apply to update the grid and then continue with step 6.

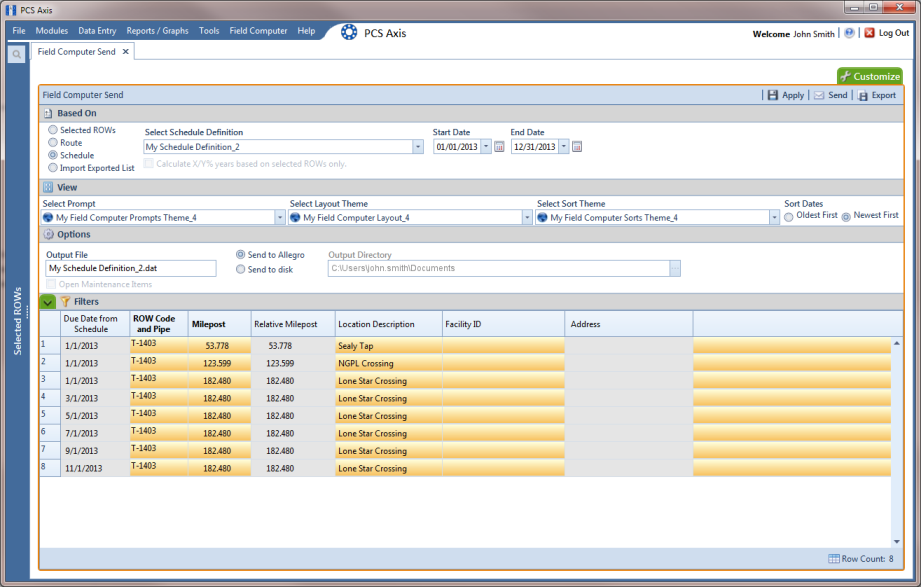

Figure 13-25. Field Computer Send Based on Schedule

6	Click the Customize tab then the Add button to open the New Layout Theme dialog box (Figure 13-26).

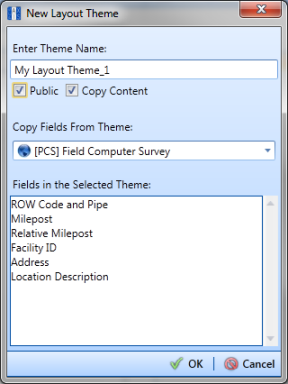

Figure 13-26. New Layout Theme

7	Type a name for the layout theme in the field Enter Theme Name. If you want to create a public theme, click the Public check box to place a check mark inside the check box. When the check box is empty, the layout saves as a private theme.

8	If you want to copy fields from another theme to the new layout theme, click the check box Copy Content. Then click the down arrow in the field Copy Fields From Theme and select a theme in the selection list.

9	Click OK to save changes and return to the Layouts page.

10	Verify the name of the new layout theme displays in the field Select Layout Theme. If not, click the down arrow in Select Layout Theme and select the new theme in the selection list.

11	Complete the following steps to add and remove fields in the new layout theme as needed:

a	Click the toggle arrow for a field category in the left pane of the window to view a list of fields available for selection. For example, click Facility Fields.

b	Double-click a field listed in the left pane to move it to the right pane. Repeat this step as needed. The grid layout theme includes all fields listed in the right pane of the Layouts page.

c	To remove a field in the layout theme, double-click a field listed in the right pane to move it to the left pane. Repeat this step as needed.

12	To change the order of fields listed in the right pane and subsequently in the grid, click and drag a field to a new position in the list. Or, select a field and then click the up or down button.

13	Click Save and Close to return to the Field Computer Send window.

14	To apply the new layout theme to the grid, click the down arrow in the field Select Layout Theme and select the layout theme in the selection list. Then click Apply to update the grid (Figure 13-27).

Figure 13-27. Select Layout Theme
