Editing an Installed Facility Type Theme

An installed facility type theme includes [PCS] in the name of the theme, such as [PCS] Rectifier Survey. The procedure in this section explains how to complete the following tasks to edit an installed facility type theme:

•	add a facility type

•	remove a facility type

•	revert an installed facility type theme

To edit an installed facility type theme, follow these steps:

1	Click Tools > Facility Type Themes to open the Facility Type Themes window (Figure 14-1).

2	Click the down arrow in Select Facility Type Theme and select a PCS Axis installed theme, such as [PCS] P/S Survey.

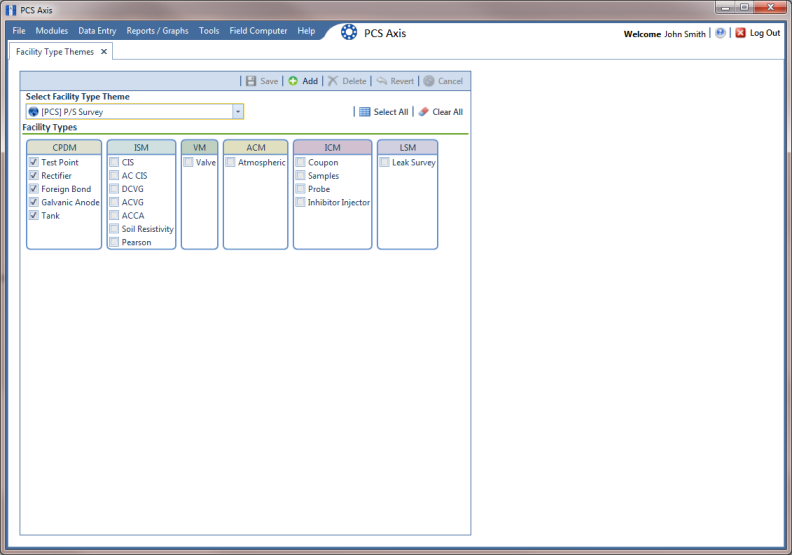

Figure 14-1. Facility Type Themes

3	To add one or more facility types in an installed theme:

•	Click the check box for each facility type you want to add, then click Save. A check mark inside a check box indicates a selection (Figure 14-1).

4	To remove one or more facility types in an installed theme:

•	Click the check box to clear the check mark for each facility type you want to remove. Click Save to save changes.

5	To revert a facility type theme and restore settings prior to editing:

•	Click Revert, then click Yes when the Confirm Revert message displays (Figure 14-2).

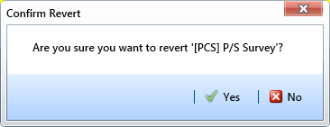

Figure 14-2. Confirm Revert
