Adding a Facility Type Theme Addition

To add a facility type theme addition, follow these steps:

1	If the Facility Type Themes window is not open, click Tools > Facility Type Themes (Figure 14-3).

Figure 14-3. Facility Type Themes Management

2	Click Add to open the New Facility Type Theme dialog box (Figure 14-4).

3	Type a name for the new theme in the field Enter Theme Name.

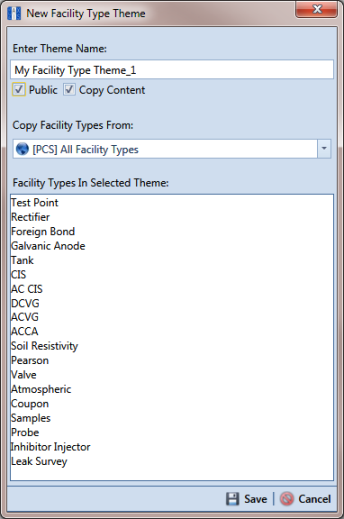

Figure 14-4. New Facility Type Theme

4	Select the Public check box if you want the new theme available to all PCS Axis users.

When a theme is not public, it is a private theme. A public theme is available for use by all PCS Axis users. A private theme is available only to the user who creates it.

5	Click the down arrow in Copy Facility Types From and select an existing facility type theme with facility types you want to copy to the new theme.

6	Click Save to save changes and close the dialog box.

7	To add one or more facility types in the new theme:

•	Click the check box for each facility type you want to add.

Clicking Select All adds all facility types in the new theme. A check mark inside a check box indicates a selection (Figure 14-5).

8	To remove one or more facility types from the new theme:

•	Click the check box to clear the check mark for each facility type you want to remove.

Clicking Clear All removes all facility types in the new theme.

9	Click Save to save changes.

The facility type theme is now available for selection in Define Routes and Field Computer Send.

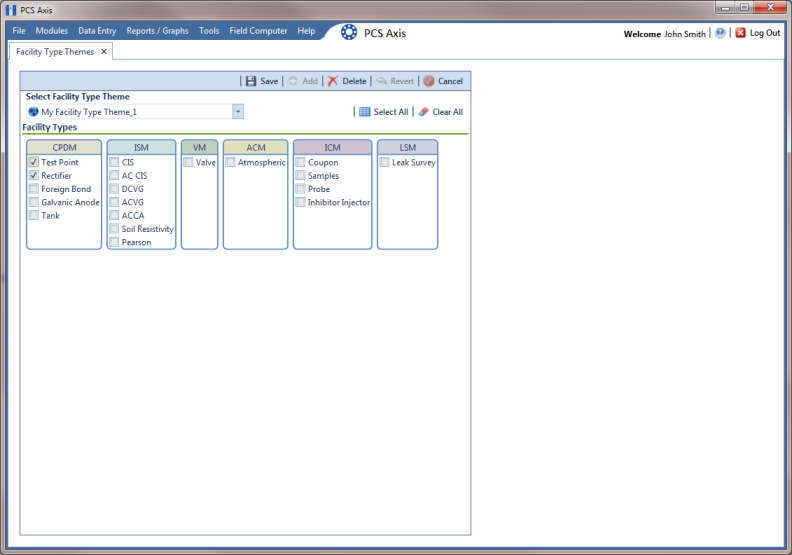

Figure 14-5. Facility Types
