Managing Themes : Managing Themes
Managing Themes
Themes Management allows you to perform the following tasks for any PCS Axis installed and user-created theme in the system:
•
change the Based On method for working with facility records
•
rename a theme
•
change a theme from Public to Private and vice versa
•
assign a Private theme to a user
•
delete a theme
To manage themes in the system, follow these steps:
1
Click Tools > Themes Management to open the Themes Management window (Figure 14-7).
2
Open a grid with the theme you want to edit. For example, to edit a grid layout theme, click the Editing tab and then the Grid Column Themes tab.
3
To edit the Based On method for a theme:
a
Select a theme in the grid. In the following example, a Test Point Inspections theme addition is selected (Figure 14-7).
b
Select a mode for displaying facility records in a data entry grid, report, or survey file sent to the Allegro Field PC. Click the Based On field and then select one of the following options in the selection list: Selected ROWs, Route, Schedule, or Exported.
4
To rename a theme:
•
Select a theme in the grid and then type a name in the Theme field.
5
To change a theme from Public to Private:
a
Select a theme in the grid and then click the check box Is Public to remove the check mark.
b
Assign the Private theme to a user. Click the Assigned To field and select a user name in the selection list.
6
To change a theme from Private to Public:
•
Select a theme in the grid and then click the check box Is Public to place a check mark inside the check box. PCS Axis automatically removes the user name associated with the private theme in the Assigned To field.
7
To delete a theme, select a theme in the grid and then click Delete. When the Confirm Delete message opens, click Yes.

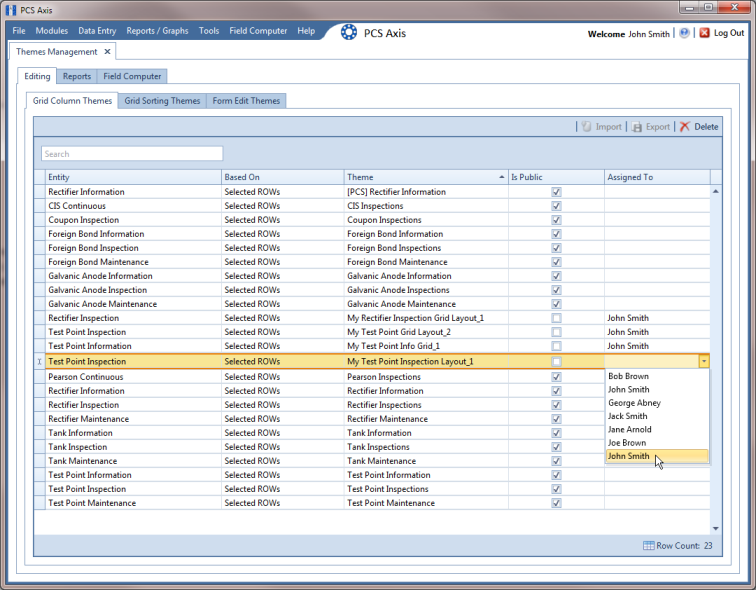

Figure 14-7. Themes Management
