If your company plans to use the Allegro Field PC with PCS Axis, complete the following steps to set up Field Computer options:
|
1
|
If the Options window is not open, click Tools > Options to open the window. Then click the Field Computer tab (Figure 3-10).
|
|
2
|
To only use the Allegro digital voltmeter to record voltage readings, enable the option Require Voltage Readings By Voltmeter. Enabling this option prevents manual data entry of voltage readings on the Allegro.
|
|
3
|
Enable or disable the Private check box based on your company’s requirements.
|
When the Private check box is enabled, the currently logged in user can change the property setting. Changes are “private” and only apply to the logged in user who makes a change to the setting. If the Private check box is disabled for a property setting, the property setting made by the SysAdmin applies globally to all users and users cannot change the setting.
|
4
|
Click
 Save to save changes. |

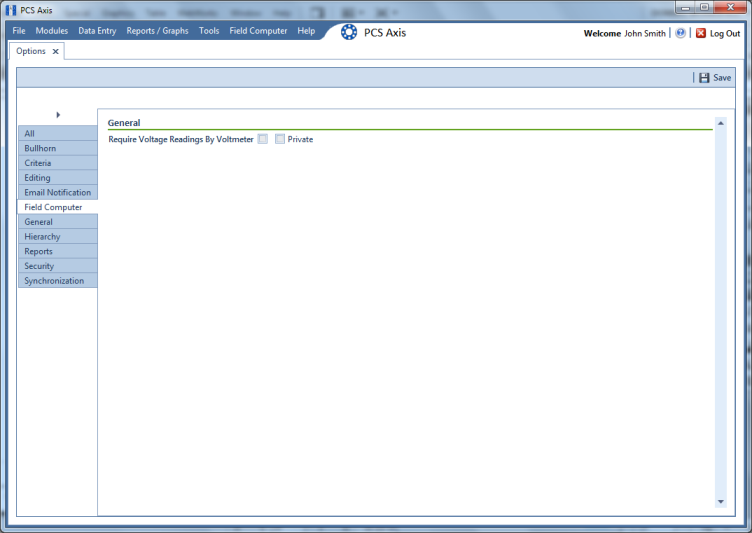

Figure 3-10. Field Computer Options
