Selecting a Default Location Format

Information in this section explains how to set up Default Location Format and other pipeline information. A Default Location Format must be set for each pipeline added in the system hierarchy.

Complete the following steps:

1	Click File > Select ROWs to open the Select ROWs window (Figure 4-10).

2	Select one or more pipelines and then click Save to close the window.

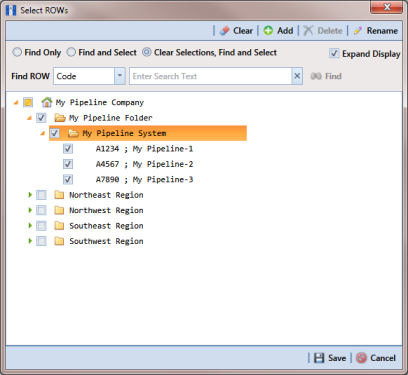

Figure 4-10. Select ROWs

3	Click Data Entry > Edit ROW Detail to open the Edit ROW Detail window (Figure 4-11).

4	If you want to collapse the Selected ROWs panel to view more of the Edit ROW Detail grid, click Selected ROWs. To expand the panel, click Selected ROWs again.

5	Select a pipeline in the Information grid.

6	Select the field Default Location Format to display a drop down arrow. Click the arrow and select a location format in the selection list. (See Understanding Default Location Formats for a description of available choices.)

7	Click Add in the Facility Location ID Formats mini-grid. A list of all facility types display in the mini-grid with the location format selected in step 6. If you want to change the location format for a particular facility type listed in the mini-grid, follow these steps:

a	Select a row of records in the mini-grid with the facility type you want to change the location format.

b	Select the field Facility Location Format to display a drop down arrow. Click the arrow and select a location format in the selection list.

8	Set up other pipeline information as needed then click Refresh. When you finish, click the close icon to close the Edit ROW Detail window.

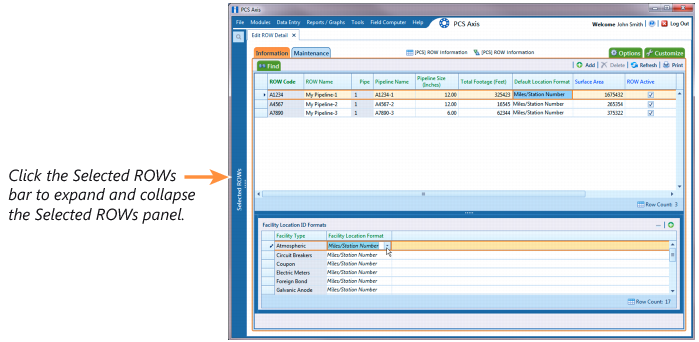

Figure 4-11. Edit ROW Detail
