Adding a Pipeline Information Record

Use the Information grid in Edit ROW Detail to add an information record for a pipeline selected in the Select ROWs window. Adding an information record allows you to maintain history records when important permanent information changes, such as when a pipeline is taken out of service or is sold to another business.

To add a pipeline information record, follow these steps:

1	Click the Select ROWs button to open the Select ROWs window (Figure 4-12).

2	Select one or more pipeline segments you want to work with by clicking the check box for each pipeline segment. Click Save to close the window.

Note: A check mark inside a check box indicates a selection. To clear a selection, click the check box again to remove the check mark. A shaded check box indicates selection of some, not all, child folders, ROWs, and pipelines.

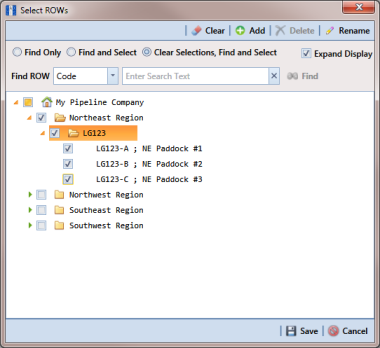

Figure 4-12. Select ROWs

3	Open the Edit ROW Detail grid. Click Data Entry > Edit ROW Detail (Figure 4-13).

4	If you want to collapse the Selected ROWs panel to view more of the grid, click the Selected ROWs bar. Clicking the bar again expands the panel.

5	If the Information grid is not visible, click the Information tab .

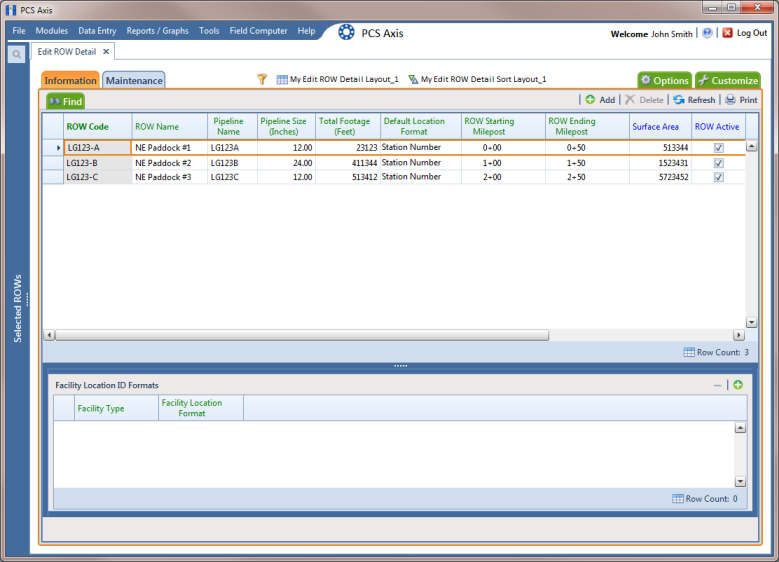

Figure 4-13. Information Grid

6	Click Add to open the Add Record dialog box (Figure 4-14).

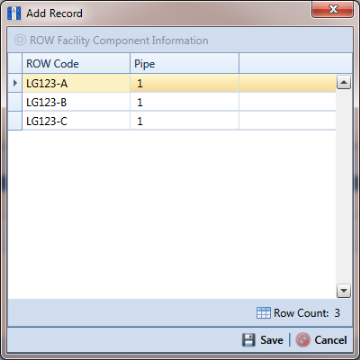

Figure 4-14. Add Record

7	Select the pipeline in the dialog box that you want to add an information record. For example, pipeline LG123-A is selected in the next figure (Figure 4-15).

Figure 4-15. Add Record

8	Click Save to display required field(s) for data entry (Figure 4-16).

9	Type a date in the Effective Date field using the format MM/DD/YYYY to indicate the month, day, and year. Or click the down arrow in the field and select a date using a calendar.

Effective Date is the date a record becomes effective, such as when a pipeline becomes inactive or is taken out of service.

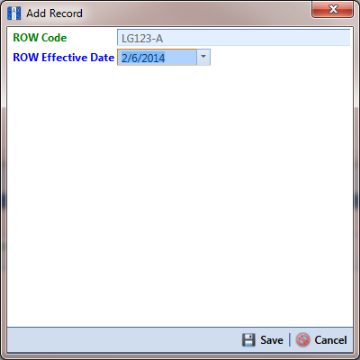

Figure 4-16. Add Record

10	Click Save to close the Add Record dialog box and add an information record in the grid for the existing pipeline (Figure 4-16).

11	Provide other pipeline data in the grid as needed, such as Permanent Comments.

12	Click Refresh to update the grid.

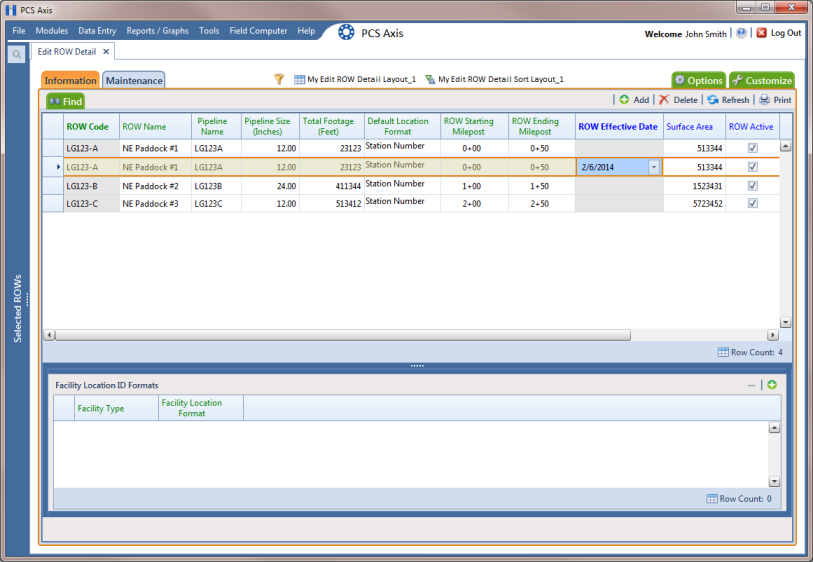

Figure 4-17. Information
