Working with Pipeline Records : Adding a Pipeline Maintenance Record

Adding a Pipeline Maintenance Record
Use the Maintenance grid in Edit ROW Detail to add a maintenance record for a pipeline selected in the Select ROWs window. Adding pipeline maintenance records allows you to examine the effectiveness of a maintenance program. You can either view data in the maintenance grid of Edit ROW Detail or run a ROW maintenance report.
To add a pipeline maintenance record, follow these steps:
Click the Select ROWs button to open the Select ROWs window (Figure 4-12). Select one or more pipeline segments you want to work with by clicking the check box for each pipeline segment. Then click Save to close the window.
Open Edit ROW Detail. Click Data Entry > Edit ROW Detail (Figure 4-18).
If you want to collapse the Selected ROWs panel to view more of the grid, click the Selected ROWs bar. Clicking the bar again expands the panel.
Click the Maintenance tab to open the Maintenance grid (Figure 4-18).

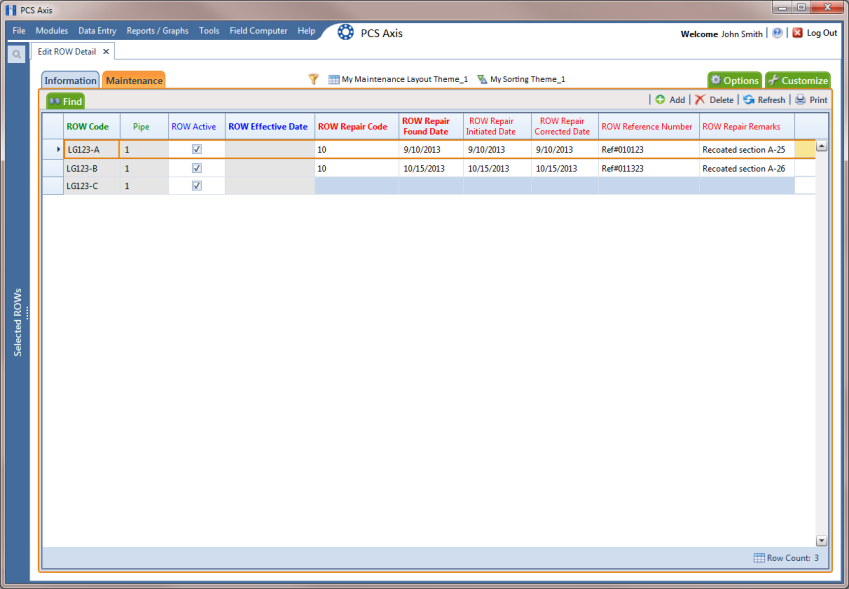

Figure 4-18. Maintenance
Click Add to open the Add Record dialog box (Figure 4-19).

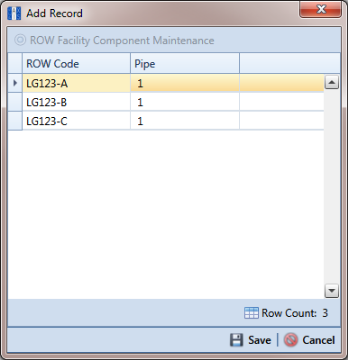

Figure 4-19. Add Record

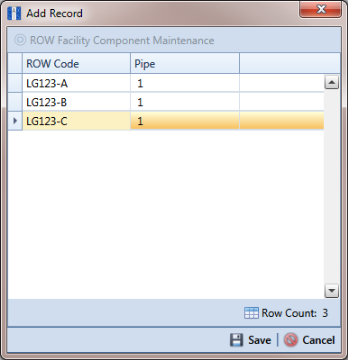

Figure 4-20. Add Record
Click Save to display required field(s) for data entry. Required fields are identified with the icon, such as ROW Repair Code in the next figure (Figure 4-21).
Type a repair code in the field ROW Repair Code. Repair code is a designation used by your company to identify the type of repair. The field accepts up to 15 alphanumeric characters including special characters such as the pound sign (#), asterisk (*), or hyphen (-).
Type a date in the field ROW Repair Found Date using the format MM/DD/YYYY to indicate the month, day, and year. Or click the down arrow in the field and select a date using a calendar.

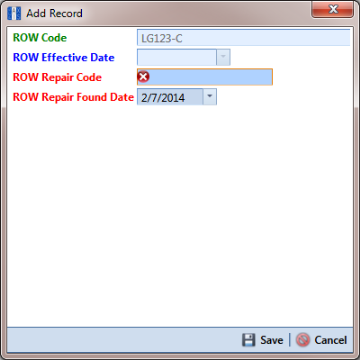

Figure 4-21. Add Record
Click Save to close the Add Record dialog box and add a pipeline maintenance record in the grid (Figure 4-22).
Provide other maintenance data in the grid as needed. For example, provide a date in the fields ROW Repair Initiated Date and ROW Repair Corrected Date; a maintenance reference number in the field ROW Reference Number; and remarks about the repair in the field ROW Repair Remarks.
Click Refresh to update the grid.

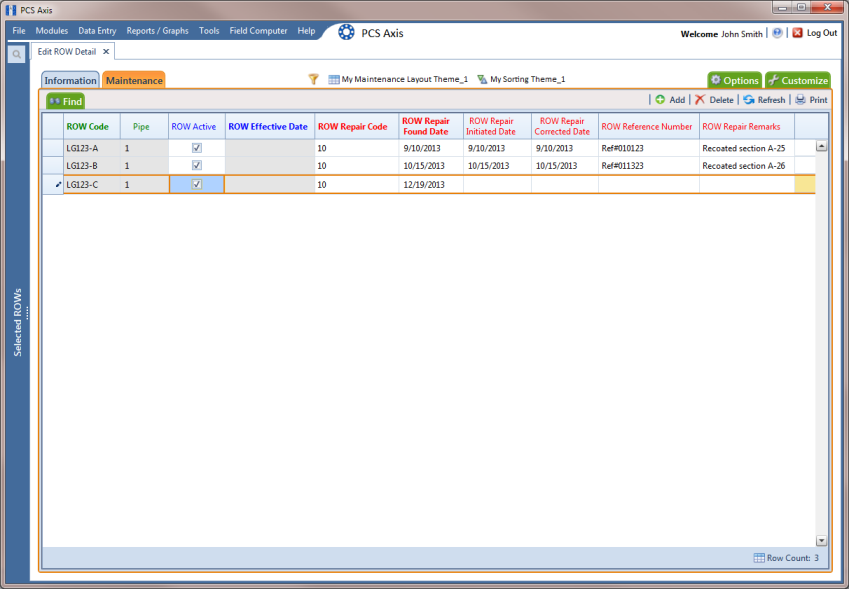

Figure 4-22. Maintenance
