Adding an AND Filter Group

An AND filter group is a named set of one or more filters that affect the data output in the Edit ROW Detail grid. Adding an AND filter group produces a subset of records that meet all filter conditions. PCS Axis processes filters in a filter group in descending order beginning with the filter at the top of the filter group.

To add an AND filter group, follow these steps:

1	Select one or more pipeline segments in the Select ROWs window. Click Save to close the window (Figure 4-31).

2	Click Data Entry > Edit ROW Detail to open the Edit ROW Detail window (Figure 4-32).

Note: Clicking the Selected ROWs bar collapses the Selected ROWs panel allowing you to view more of the grid. Clicking the Selected ROWs bar again expands the Selected ROWs panel.

3	Select the grid you want to work with by clicking the Information tab or the Maintenance tab .

4	Click the Customize tab then the Filters button to open the Filters page (Figure 4-40).

5	Click New ‘And’ Group to open the filter properties group box.

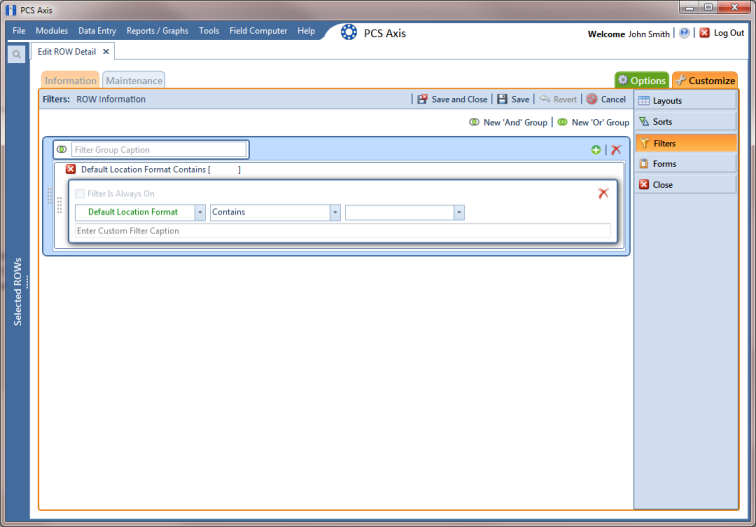

Figure 4-40. Filters

6	Type a name for the filter group in the field Filter Group Caption.

7	Use filter selection fields to set up filter criteria. Select a PCS Axis field, operator, and one or more filter conditions.

8	If you want the filter to remain on for all sessions of the data entry grid, select the check box Filter is Always On. When this check box is not selected, toggle the filter on and off in the Options page using the filter’s check box.

9	Type a name for the filter in the field Enter Custom Filter Caption.

10	If you want to set up additional filter criteria for the filter group:

a	Click Add to open another filter properties group box. Then click the edit icon to display selection fields.

b	Type a name for the filter in the field Enter Custom Filter Caption. Then repeat steps 7 through 9 to set up filter criteria.

11	To move a filter to a different position in the filter group or a filter group to a different position in a group of filters:

a	Point the mouse at the filter handle to change the cursor to a vertical resize cursor .

b	Drag and drop the filter or the filter group to a new location.

Note: PCS Axis processes filters in descending order beginning with the filter at the top of the filter group.

12	Click Save.

Note: Clicking the edit icon for a particular filter opens that filter’s property settings allowing you to change settings as needed.

13	To apply one or more custom filter groups to the data entry grid of Edit ROW Detail, follow these steps (Figure 4-41):

a	Click the Options tab to open the options page.

b	Click the check box for each filter you want to apply.

c	Click Apply to save changes and return to the data entry grid. To cancel changes, click the Options tab or Cancel to return to the data entry grid.

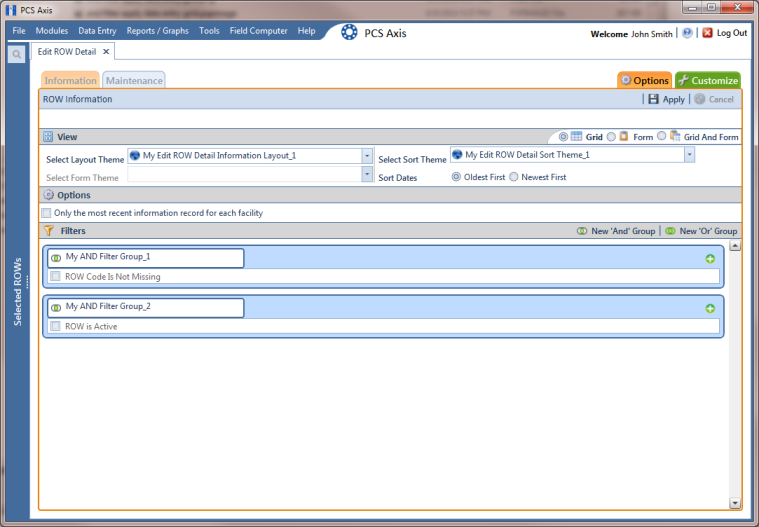

Figure 4-41. Options
