Editing and Arranging Filters and Filter Groups

PCS Axis processes filters in a filter group in descending order beginning with the filter at the top of the filter group. Filter groups are processed similarly. Information in this section explains how to edit filter property settings and how to arrange filters and filter groups.

Complete the following steps:

1	Select one or more pipeline segments in the Select ROWs window. Click Save to close the window (Figure 4-31).

2	Click Data Entry > Edit ROW Detail to open the Edit ROW Detail window (Figure 4-32).

3	Select the grid you want to work with by clicking the Information tab or the Maintenance tab .

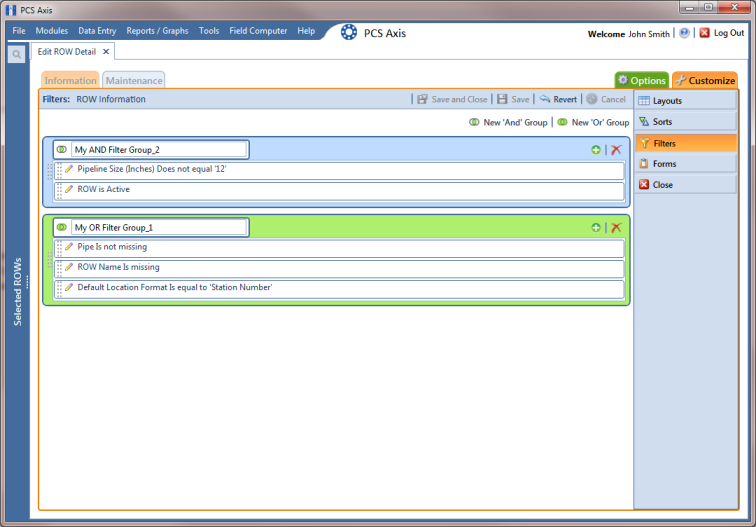

4	Click the Customize tab then the Filters button to open the Filters page (Figure 4-44).

5	Click the edit icon to display a filter’s property settings.

Figure 4-44. Filters

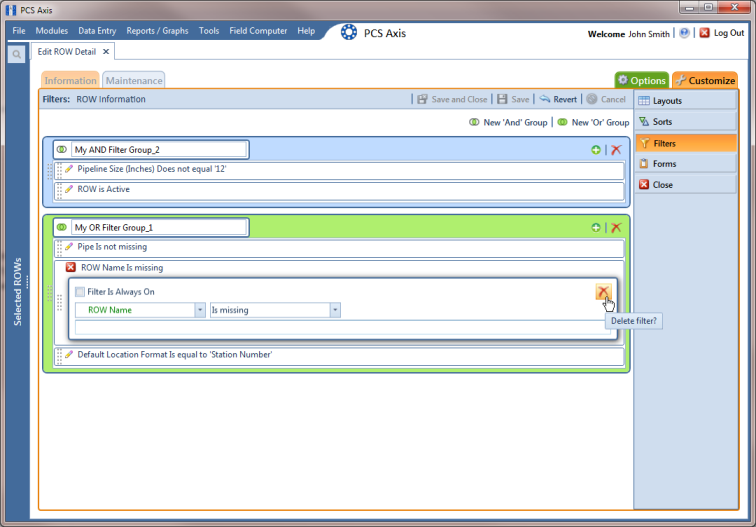

6	To delete a filter in a filter group, click the filter’s delete button (Figure 4-45). Then click Yes when the Delete message displays.

7	To rename a filter, type a description in the filter’s name field.

8	To change filter criteria, use filter selection fields to select a PCS Axis field, operator, and one or more filter conditions.

9	To enable a filter for all sessions of the data entry grid, click the check box Filter is Always On to place a check mark inside the check box. When this check box is not selected, toggle the filter on and off in the options page using the filter’s check box.

10	Click the close button to close the filter’s property settings group box.

11	To move a filter to a different position in a filter group, or to move a filter group to a different position, follow these steps:

a	Point the mouse at the handle of a filter or filter group to display a vertical resize cursor .

b	Drag and drop the filter or filter group to a new location.

Note: PCS Axis processes filters in descending order beginning with the filter at the top of the filter group.

12	Click Save and Close to save changes and return to the data entry grid.

Figure 4-45. Filters
