Adding a Facility Inspection Record

Information in this section covers the following scenarios for adding a record in the Inspection grid:

•	adding an inspection record for an existing facility (step 6)

•	adding a new facility with an inspection record (step 7)

Complete the following steps:

1	Click the Select ROWs button to open the Select ROWs window (Figure 7-4). Select one or more pipeline segments with facilities you want to work with, then click Save to close the window.

2	Open the Edit <module> Data window. For example, click Data Entry > Edit CPDM Data to open the Edit CPDM Data window (Figure 7-12).

3	Open the Inspection grid for a facility type. For example, click the Inspection tab and then a facility type button, such as Test Point .

Note: Although the CPDM module and test point facility type are both referenced in this procedure, instructions apply to any PCS Axis module and facility type.

4	If you want to collapse the Selected ROWs panel to view more of the grid, click the Selected ROWs bar. Clicking the bar again expands the panel.

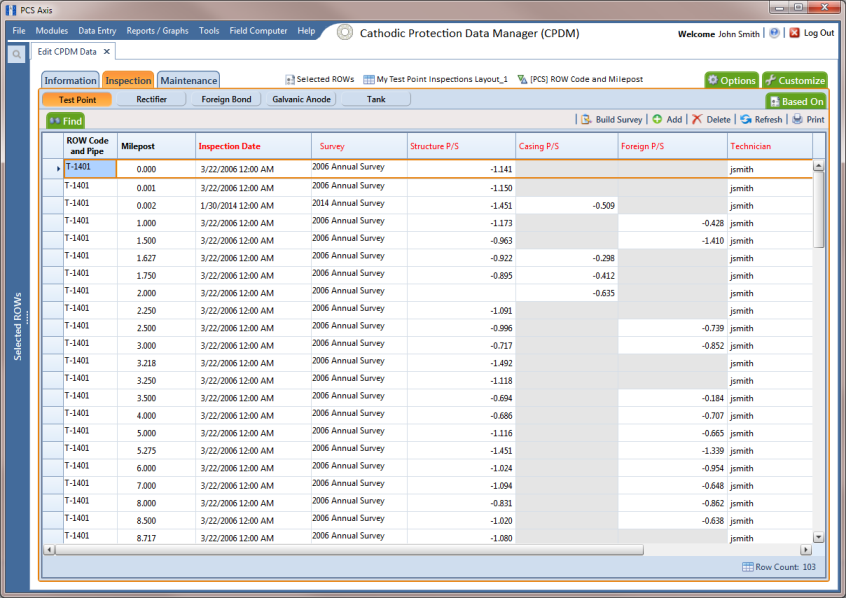

Figure 7-12. Inspection Grid

5	Click Add to open the Add Record dialog box (Figure 7-13). Then continue with one of the following steps:

•	To add an inspection record for an existing facility in the grid, continue with step 6.

•	To add a new facility in the grid with an inspection record, continue with step 7.

6	To add an inspection record for an existing facility in the grid:

a	Click the option Test Point Inspection Record.

b	Select a pipeline with the facility you want to add an inspection record. For example, pipeline T-1401 and the facility at Relative Milepost 0.000 are selected in the next figure (Figure 7-13).

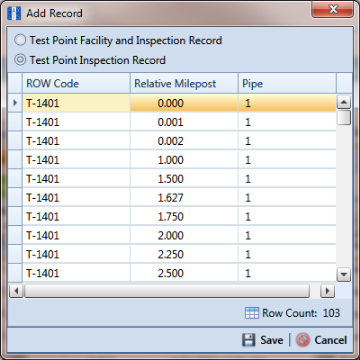

Figure 7-13. Add Record

c	Click Save to display required field(s) for data entry (Figure 7-14).

d	Type an inspection date in the Inspection Date field using the format MM/DD/YYYY to indicate the month, day, and year. Or click the down arrow in the field and select an inspection date using a calendar.

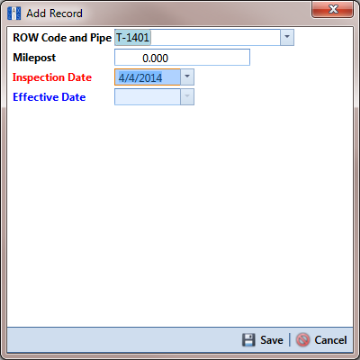

Figure 7-14. Add Record

e	Click Save to close the dialog box and add an inspection record in the grid for the existing facility (Figure 7-15).

f	Provide other inspection data in remaining fields. For example, click the Survey field and select a survey folder in the selection list. Then enter a structure pipe-to-soil reading in the field Structure P/S.

g	Click Refresh.

Figure 7-15. Inspection Grid

7	To add a new facility with an inspection record in the Inspection grid:

a	Click the option Test Point Facility and Inspection Record.

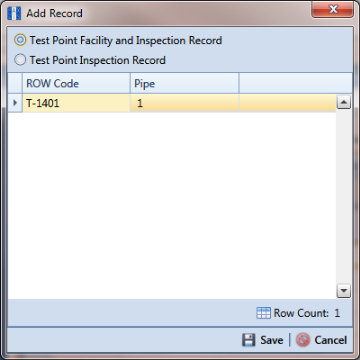

Figure 7-16. Add Record

b	Click Save to display required field(s) for data entry. Required fields are identified with the icon, such as Milepost in the following figure (Figure 7-17).

c	Type the facility milepost number in the Milepost field. Based on your system configuration, the Milepost field may have a different caption for User Location Name, such as Station Number or other type of identifier.

d	Type an inspection date in the Inspection Date field using the format MM/DD/YYYY to indicate the month, day, and year. Or click the down arrow in the field and select an inspection date using a calendar.

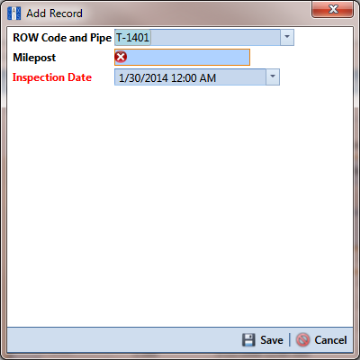

Figure 7-17. Add Record

e	Click Save to close the dialog box and add the new facility with an inspection record in the grid (Figure 7-18).

f	Provide other inspection data in remaining fields. For example, click the Survey field and select a survey folder in the selection list. Then enter a structure pipe-to-soil reading in the field Structure P/S.

In the following example, a new facility and inspection record has been added for Milepost 0.003 (Figure 7-18).

g	Click Refresh.

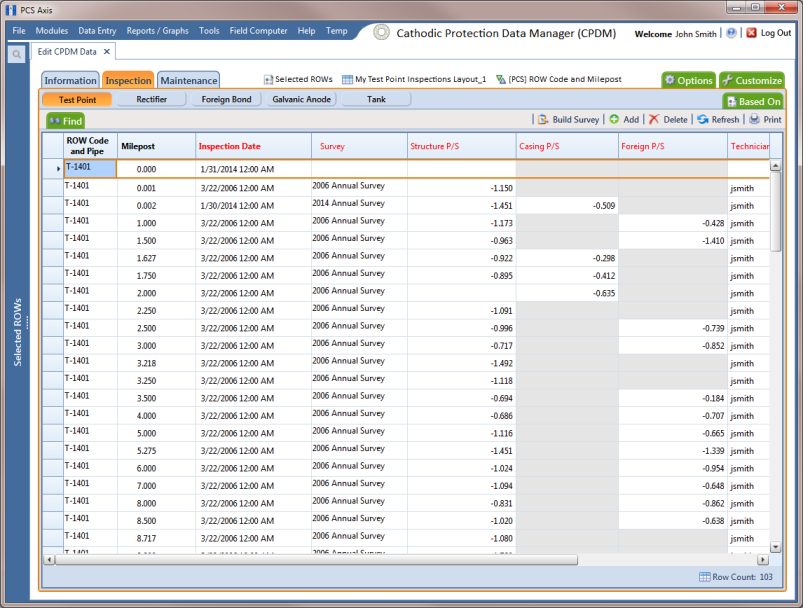

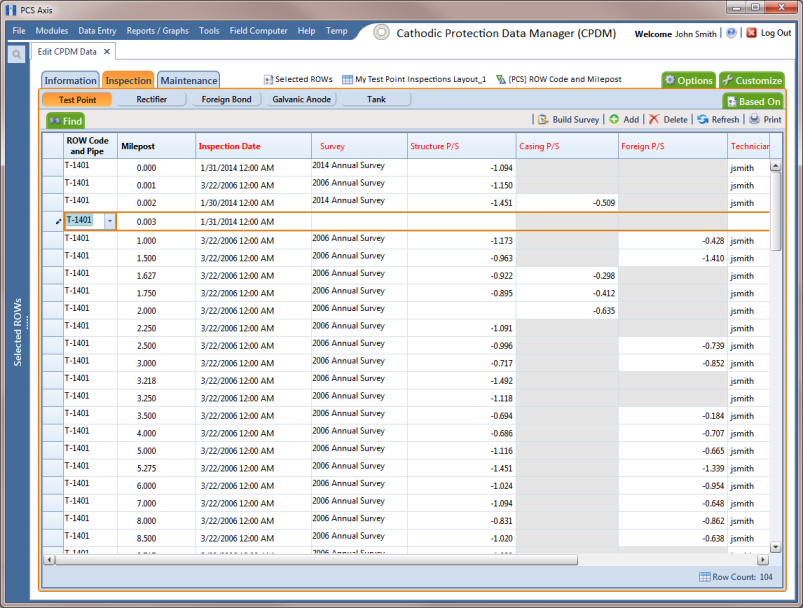

Figure 7-18. Inspection Grid
