Adding or Deleting a Record in a Continuous Survey

To add or delete a record in a continuous survey, follow these steps:

1	Click the Select ROWs button to open the Select ROWs window (Figure 7-56). Select the pipeline segment(s) with the facilities you want to work with, then click Save to close the window.

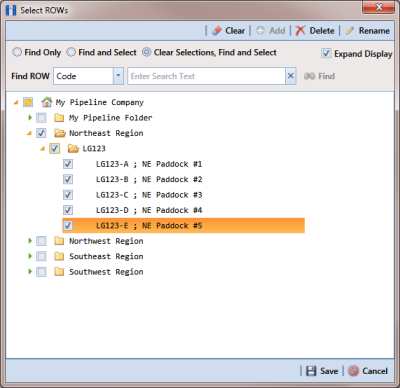

Figure 7-56. Select ROWs

2	If the ISM module is not open, click Modules > Indirect Survey Manager (ISM).

3	Open the ISM data entry grid. Click Data Entry > Edit ISM Data (Figure 7-57).

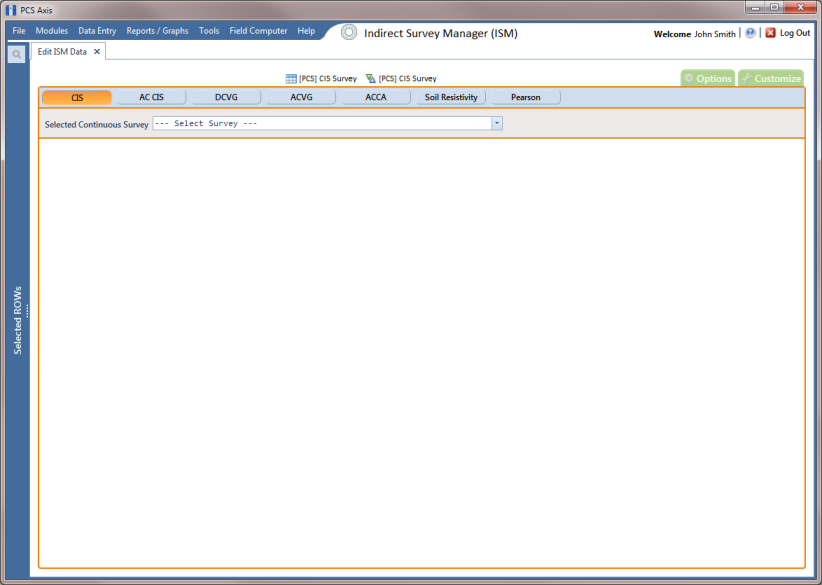

Figure 7-57. Edit ISM Data

4	Click a button labeled with the type of continuous survey data you want to work with, such as the CIS button (Figure 7-58).

5	Select a survey folder with survey readings you want to modify. Click the down arrow in Selected Continuous Survey and select a survey folder in the selection list.

6	If you want to collapse the Selected ROWs panel to view more of the grid, click the Selected ROWs bar. Clicking the bar again expands the panel.

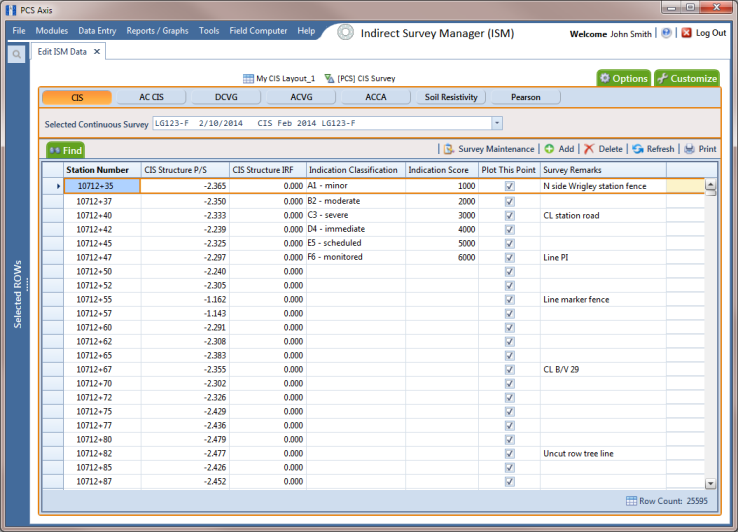

Figure 7-58. Edit ISM Data

7	To add a record in a survey, follow these steps:

a	Click Add to open the Add Record dialog box (Figure 7-59).

b	Type a survey location in the Station Number field.

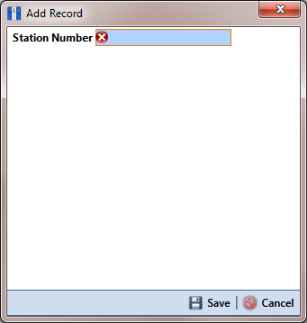

Figure 7-59. Add Record

c	Click Save to add the record in the grid. For example, a record for station number 10712+56 has been added in the next figure (Figure 7-60).

d	Provide survey data as needed. For example, type a survey reading in the CIS Structure P/S field and remarks in the Survey Remarks field.

e	Click Refresh to update the grid.

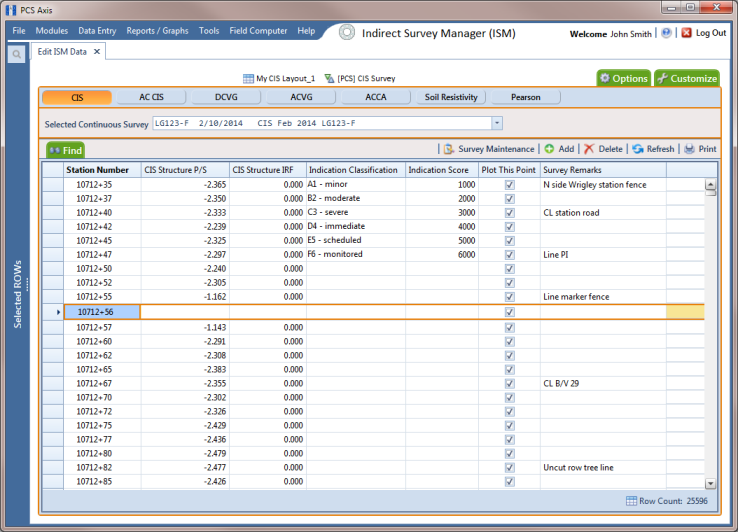

Figure 7-60. Edit ISM Data

8	To delete a record in a survey:

a	Click a station number to select a row of records in the Edit ISM Data grid.

b	Click Delete.

c	When the Delete Record message opens, click Delete to delete the selected record. Clicking Cancel cancels the operation.

d	When the following Warning message displays, click Yes to delete the survey record:

Delete selected survey reading record? This action cannot be undone?

e	Click Refresh to update the grid.
