Deleting a Range of Station Numbers

Information in this section explains how to delete a range of station numbers in a survey. Survey readings associated with the range of station numbers are also deleted. Deleting all station numbers in a survey also deletes the survey.

To delete a range of station numbers in a survey, follow these steps:

1	Click the Select ROWs button to open the Select ROWs window (Figure 7-56). Select the pipeline segment(s) with the facilities you want to work with, then click Save to close the window.

2	If the ISM module is not open, click Modules > Indirect Survey Manager (ISM).

3	Click Data Entry > Edit ISM Data to open the ISM data entry grid. Then click a button labeled with the type of continuous survey data you want to work with, such as the CIS button (Figure 7-70).

4	Select a survey folder with station numbers you want to delete. Click the down arrow in Selected Continuous Survey and select a survey folder in the selection list.

Note: If you want to collapse the Selected ROWs panel, click the Selected ROWs bar. Clicking the bar again expands the panel.

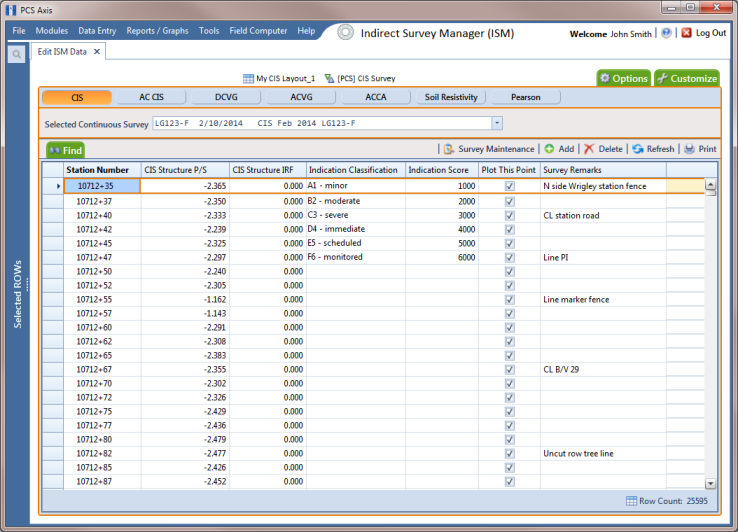

Figure 7-70. Edit ISM Data

5	Click Survey Maintenance to open the Survey Maintenance dialog box. Then click Delete (Figure 7-71).

6	Identify the range of station numbers you want to delete (includes associated survey readings). Type a starting station number in the field Starting Station Number and an ending station number in the field Ending Station Number.

Note: Clicking the Windows close button cancels the operation and closes the dialog box.

7	Click Apply.

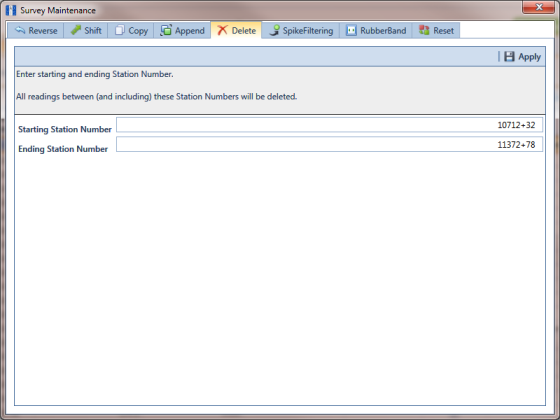

Figure 7-71. Delete Range of Station Numbers

8	When the message Delete Survey Readings displays, click OK to delete station numbers and associated survey readings. Clicking Cancel cancels the operation (Figure 7-72).

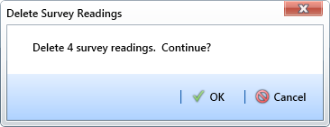

Figure 7-72. Delete Survey Readings
