Resetting Station Numbers

Use Reset to return all station numbers in the selected survey to original station numbers that were collected when the survey was first entered in the ISM data entry grid.

To reset station numbers, follow these steps:

1	Click the Select ROWs button to open the Select ROWs window (Figure 7-56). Select the pipeline segment(s) with the facilities you want to work with, then click Save to close the window.

2	If the ISM module is not open, click Modules > Indirect Survey Manager (ISM).

3	Click Data Entry > Edit ISM Data to open the ISM data entry grid. Then click a button labeled with the type of continuous survey data you want to work with, such as the CIS button (Figure 7-77).

4	Select a survey folder with survey readings you want to shift. Click the down arrow in Selected Continuous Survey and select a survey folder in the selection list.

Note: If you want to collapse the Selected ROWs panel, click the Selected ROWs bar. Clicking the bar again expands the panel.

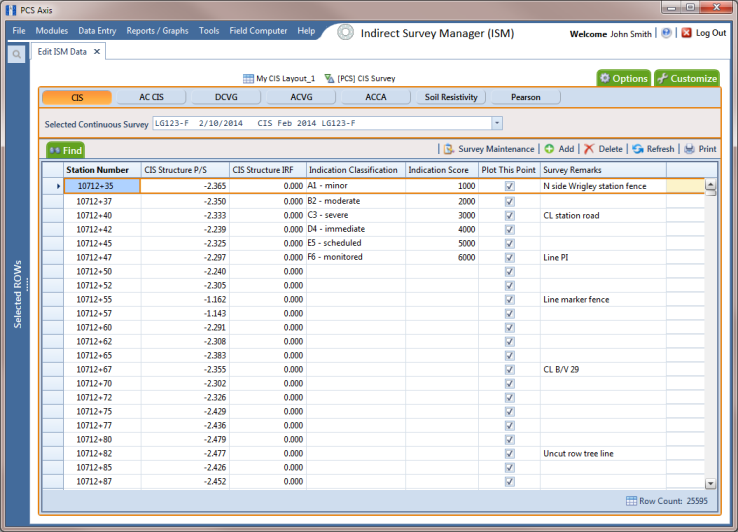

Figure 7-77. Edit ISM Data

5	Click Survey Maintenance to open the Survey Maintenance dialog box. Then click Reset (Figure 7-78).

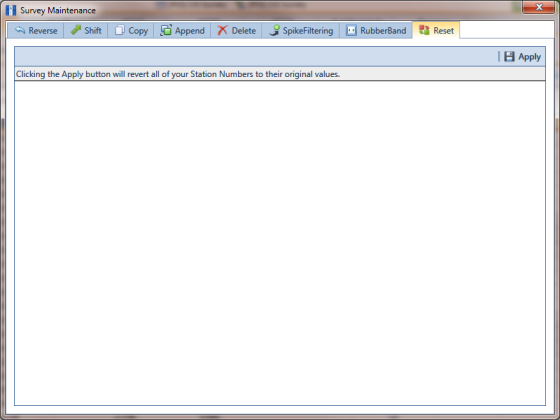

Figure 7-78. Reset

6	Click Apply. When the Reset Station Numbers message displays, click OK to reset all station numbers or Cancel to cancel the operation (Figure 7-79).

The data entry grid now displays original station numbers.

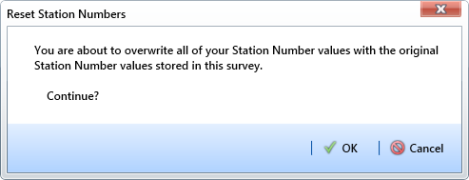

Figure 7-79. Reset Station Numbers
