Changing the Order of Facilities

The order of facilities shown in the Facilities in Route grid identifies the facility order used in a route. You can easily change the order of facilities by dragging and dropping one or more grid rows to a different location in the grid. Changing the order allows you to arrange facilities based on particular criteria, such as arranging facilities in the order a survey is taken.

To change the order of facilities in a route, follow these steps:

1	If the Define Routes window is not open, complete the following steps:

a	Select one or more pipeline segments in the Select ROWs window (Figure 8-6). Click Save to close the window.

b	Click Data Entry > Define Routes, then click the down arrow in Routes and select a route (Figure 8-1).

2	Arrange the order of facilities listed in the Facilities in Route grid as needed using any of the following methods (Figure 8-11):

•	To move a single grid row, select the row, then drag and drop the row in a different location in the grid. Click Save to save changes.

Note: A message displays when moving selected grid rows to confirm the new location in the grid (Figure 8-11).

•	To move a group of consecutive grid rows, click the first row, press and hold the Shift key, then click the last row. Drag and drop selected rows in a different location in the grid. Click Save to save changes.

•	To move a group of non-consecutive grid rows, press and hold the Ctrl key, then click each row you want to select. Drag and drop selected rows in a different location in the grid. Click Save to save changes.

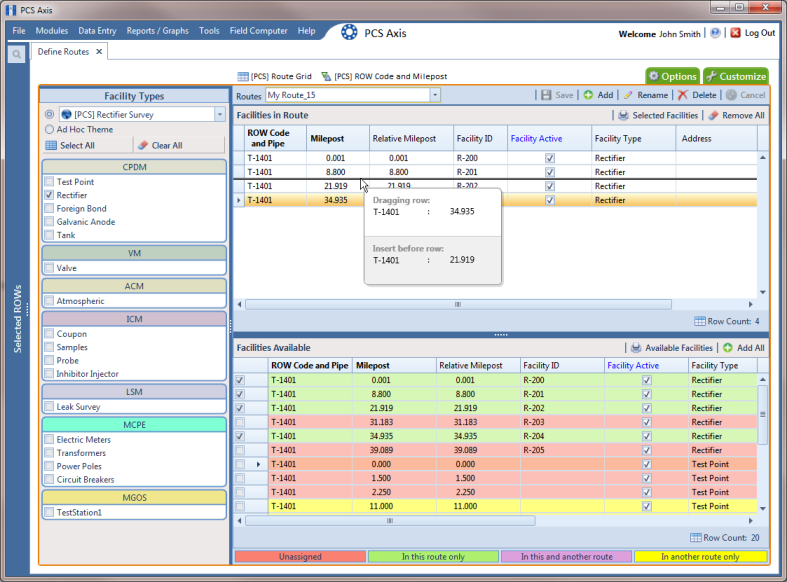

Figure 8-11. Arranging the Order of Facilities
