An installed layout theme includes [PCS] in the name of the theme, such as
[PCS] Route Grid. A layout theme determines which fields are present when viewing or printing a route. The procedure in this section explains how to complete the following tasks to edit a PCS Axis installed layout theme:
[PCS] Route Grid. A layout theme determines which fields are present when viewing or printing a route. The procedure in this section explains how to complete the following tasks to edit a PCS Axis installed layout theme: |
1
|
Select one or more pipeline segments in the Select ROWs window (Figure 8-6). Click
 Save to close the window. |
|
2
|
Click Data Entry > Define Routes to open the Define Routes window. Click the down arrow in the Routes field and select a route in the list (Figure 8-40).
|

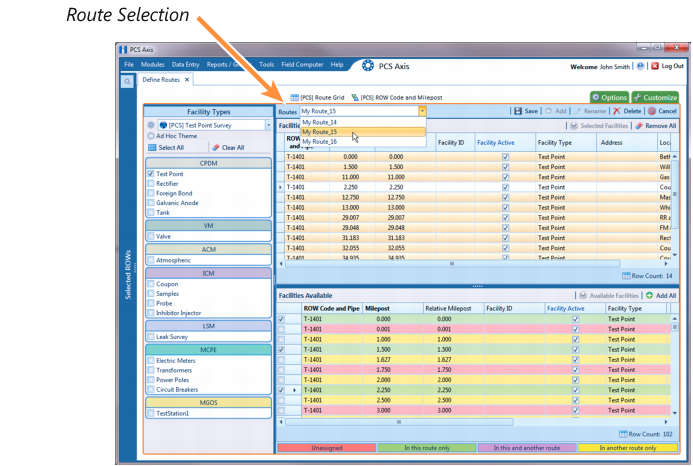

Figure 8-40. Define Routes
|
3
|
to view the |
4
|
Select a PCS Axis installed layout theme. Click the down arrow in Select Layout Theme and select a theme in the selection list, such as
 [PCS] Route Grid. |
|
5
|
for a field category in the left pane to view a list of fields available for selection, such as
to move selected fields to the right pane. The theme includes all fields listed in the right pane.
.
are required and cannot be removed from the theme, such as

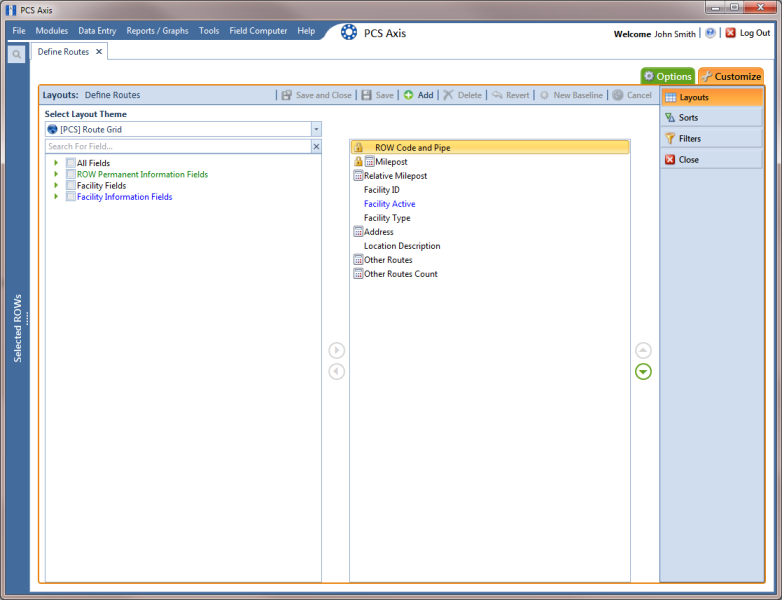

Figure 8-41. Layouts
|
8
|
Click
 Save to save changes. |
|
•
|
|
10
|
