Adding a Layout Theme Addition

Complete the following steps to add a layout theme addition:

1	Select one or more pipeline segments in the Select ROWs window (Figure 8-6). Click Save to close the window.

2	Click Data Entry > Define Routes to open the Define Routes window. Click the down arrow in the Routes field and select a route in the selection list (Figure 8-40).

3	Click the Customize tab to view the Layouts page (Figure 8-41).

4	Click Add to open the New Layout Theme dialog box (Figure 8-42).

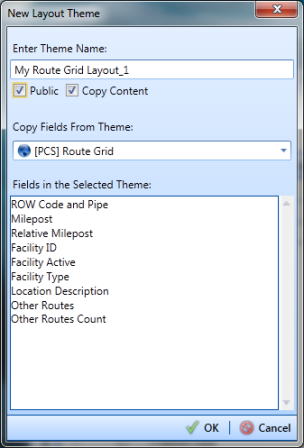

Figure 8-42. New Layout Theme

5	Type a name for the theme in the field Enter Theme Name.

6	Select the Public check box if you want the new theme available to all PCS Axis users. When a theme is not public, it is a private theme available only to the user who creates it.

Note: Creating public themes is a function available only to users assigned the SysAdmin user role. Private themes can be created by users assigned the User, Read Only, or SysAdmin user role. See System Security for more information.

7	Select a layout theme with fields you want to copy to the new layout theme. Click the Copy Content check box and then click the down arrow in Copy Fields From Theme and select a theme in the selection list.

8	Click OK to save changes and return to the Layouts page.

9	Verify the name of the new layout theme displays in the field Select Layout Theme. If not, click the down arrow in Select Layout Theme and select the new theme in the selection list.

10	Add and remove fields in the new layout theme as required. If needed, refer to Editing a Layout Theme Addition. When you finish, click Save.

11	To apply the new layout theme in the Define Routes grid, follow these steps:

a	Click the Options tab to open the options page (Figure 8-43).

b	Click the down arrow in Select Layout Theme and select the new layout theme in the selection list.

c	Click Apply to apply changes and return to the grid in Define Routes.

Note: Clicking Cancel allows you to close the Options page without saving changes.

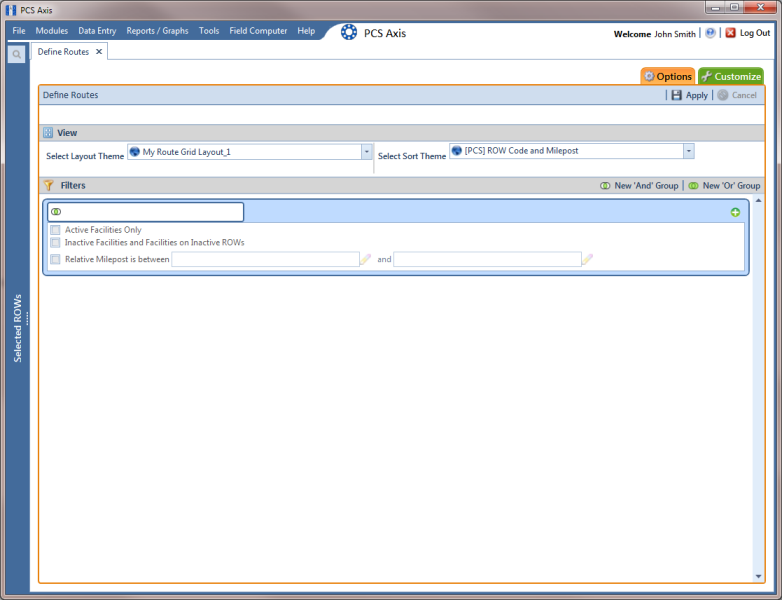

Figure 8-43. Options
