Editing a Layout Theme Addition

Information in this section explains how to perform the following tasks when working with a layout theme addition:

•	add or remove fields in a layout theme addition

•	revert a layout theme addition

•	create a new baseline layout theme addition

•	delete a layout theme addition

Complete the following steps:

1	Select one or more pipeline segments in the Select ROWs window (Figure 8-6). Click Save to close the window.

2	Click Data Entry > Define Routes to open the Define Routes window. Click the down arrow in the Routes field and select a route in the selection list (Figure 8-40).

3	Click the Customize tab to view the Layouts page (Figure 8-41).

4	Click the down arrow in Select Layout Theme and select a layout theme in the selection list.

5	To add fields in a layout theme addition:

a	Click the toggle arrow for a field category in the left pane to view a list of fields available for selection, such as All Fields.

b	Click the check box for each field you want to include in the theme. Then click the top arrow button to move selected fields to the right pane. The theme includes all fields listed in the right pane.

Note: Double-clicking a field in the left pane also moves it to the right pane.

c	Click Save to save changes.

6	To remove fields in a layout theme addition:

•	Select one or more fields listed in the right pane of the window, then click the bottom arrow button .

To multi-select fields in the right pane, press the Ctrl key when selecting fields in non-consecutive order; or press the Shift key when selecting fields in consecutive order.

7	Click Save to save changes. The layout theme includes all fields listed in the right pane (Figure 8-44).

8	To revert a layout theme addition and restore settings prior to editing:

•	Click Revert, then click Yes when the Confirm Revert message displays.

9	To save current settings as new baseline settings, click New Baseline. When future changes are made and then reverted, PCS Axis restores the theme with baseline settings.

10	To delete a layout theme addition:

a	Click the down arrow in Select Layout Theme and select a layout theme addition.

b	Click Delete, then click Yes when the Confirm Delete message displays.

11	Click Close to close the Layouts page and return to the Define Routes window.

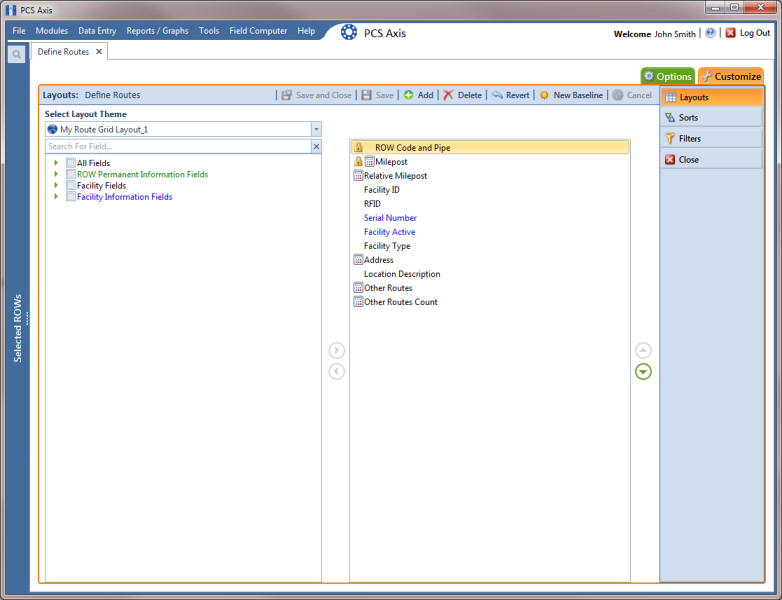

Figure 8-44. Layouts
