Editing an Installed Sort Theme

An installed sort theme includes [PCS] in the name of the theme, such as [PCS] Facility ID. The procedure in this section explains how to complete the following tasks to edit an installed layout theme:

•	add fields in an installed sort theme

•	remove fields in an installed sort theme

•	revert an installed sort theme

To edit an installed sort theme, follow these steps:

1	Select one or more pipeline segments in the Select ROWs window (Figure 8-6). Click Save to close the window.

2	Click Data Entry > Define Routes to open the Define Routes window. Click the down arrow in the Routes field and select a route in the selection list (Figure 8-40).

3	Click the Customize tab , then the Sorts button to open the Sorts page (Figure 8-45).

4	Click the down arrow in Select Sort Theme and select a PCS Axis installed sort theme, such as [PCS] Facility ID.

5	Click the toggle arrow for a field category in the left pane to view a list of fields available for selection, such as All Fields.

6	Click the check box for each field you want to include in the theme. Then click the top arrow button to move selected fields to the right pane. The theme includes all fields listed in the right pane.

Note: Double-clicking a field in the left pane also moves it to the right pane.

7	Select a sort method for each field listed in the right pane. To sort grid rows in ascending order, click the toggle button to select ASC . To sort in descending order, click the toggle button to select DESC .

8	To change the order of fields listed in the right pane and subsequently in the grid, click and drag a field to a new position in the list. Or, select a field and then click the up or down button.

9	Click Save.

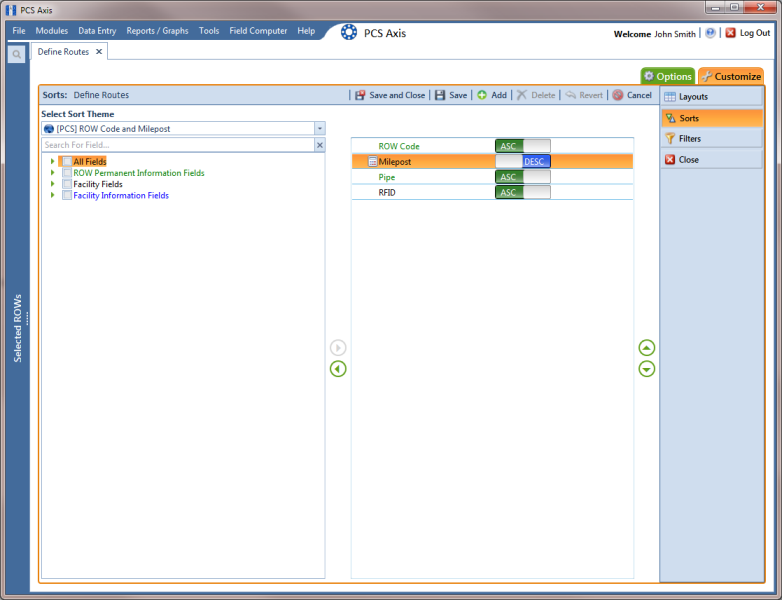

Figure 8-45. Sorts

10	To apply the sort theme in the grid, follow these steps:

a	Click the Options tab to open the options page.

b	Click the down arrow in Select Sort Theme and select the sort theme in the selection list.

c	Click Apply to apply changes and return to the grid in Define Routes.

Note: Clicking Cancel allows you to close the Options page without saving changes.
