Editing a Sort Theme Addition

The following procedure explains how to perform the following tasks to edit a sort theme addition:

•	add or remove one or more sort fields

•	revert a sort theme addition

•	delete a sort theme addition

Complete the following steps:

1	Select one or more pipeline segments in the Select ROWs window (Figure 8-6). Click Save to close the window.

2	Click Data Entry > Define Routes to open the Define Routes window. Click the down arrow in the Routes field and select a route in the selection list (Figure 8-40).

3	Click the Customize tab , then the Sorts button to open the Sorts page (Figure 8-48).

4	Click the down arrow in Select Sort Theme and select a sort theme addition.

5	To add fields and select a sort order:

a	Click the toggle arrow for a field category in the left pane to view a list of fields available for selection, such as All Fields.

b	Click the check box for each field you want to include in the theme. Then click the top arrow button to move selected fields to the right pane. The theme includes all fields listed in the right pane.

Note: Double-clicking a field in the left pane also moves it to the right pane.

c	Select a sorting method for each field listed in the right pane. To sort grid rows in ascending order, click the toggle button to select ASC . To sort in descending order, click the toggle button to select DESC .

d	To change the order of fields listed in the right pane and subsequently in the grid, click and drag a field to a new position in the list. Or, select a field and then click the up or down button.

e	Click Save to save changes.

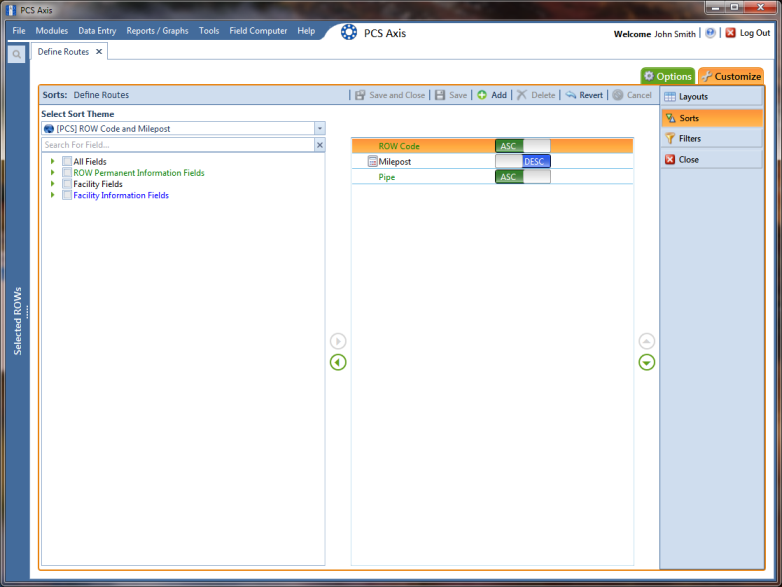

Figure 8-48. Sorts

6	To remove fields in the sort theme addition:

•	Select one or more fields listed in the right pane of the window, then click the bottom arrow button . Click Save to save changes. The sort theme includes all fields listed in the right pane.

To multi-select fields in the right pane, press the Ctrl key when selecting fields in non-consecutive order; or press the Shift key when selecting fields in consecutive order.

7	To revert a sort theme addition and restore settings prior to editing:

•	Click Revert, then click Yes when the Confirm Revert message displays.

8	To delete a sort theme addition:

a	Click the down arrow in Select Sort Theme and select a sort theme addition.

b	Click Delete, then click Yes when the Confirm Delete message displays.

9	To apply a sort theme addition in the grid, follow these steps:

a	Click the Options tab to open the options page (Figure 8-47).

b	Click the down arrow in Select Sort Theme and select the sort theme in the selection list.

c	Click Apply to apply changes and return to the grid in Define Routes.

Note: Clicking Cancel allows you to close the Options page without saving changes.
