Previewing a Route

Information in this section describes how to view, print, and export a route with selected or available facilities.

Selected facilities are those included in the route. These facilities are also listed in the Facilities in Route grid of the Define Routes window (Figure 8-54). Available facilities are linked to the current ROW selection, but are not included in the route. Available facilities are listed in the Facilities Available grid of the Define Routes window.

Complete the following steps:

1	Select one or more pipeline segments in the Select ROWs window (Figure 8-6). Click Save to close the window.

2	Click Data Entry > Define Routes to open the Define Routes window. Click the down arrow in the Routes field and select a route in the selection list.

3	To view selected facilities in a Print Preview window (Figure 8-54), click the Selected Facilities button in the Facilities in Route grid.

To view available facilities in a Print Preview window, click the Available Facilities button in the Facilities Available grid.

Clicking Selected Facilities allows you to view a report with facilities included in the route. Clicking Available Facilities opens a report with facilities listed in the Facilities Available grid.

4	Click the Print button to open the Print dialog box and select a printer to print the route. Or, click the Quick Print button to print the route using the default printer set up in Windows.

5	If you want to export the route, click the Export Document button and select any of the following file formats: PDF, HTML, MHT, RTF, XLS, XLSX, CSV, TXT, IMG, and XPS.

6	Click the Close button to close the Print Preview window and return to the Define Routes window.

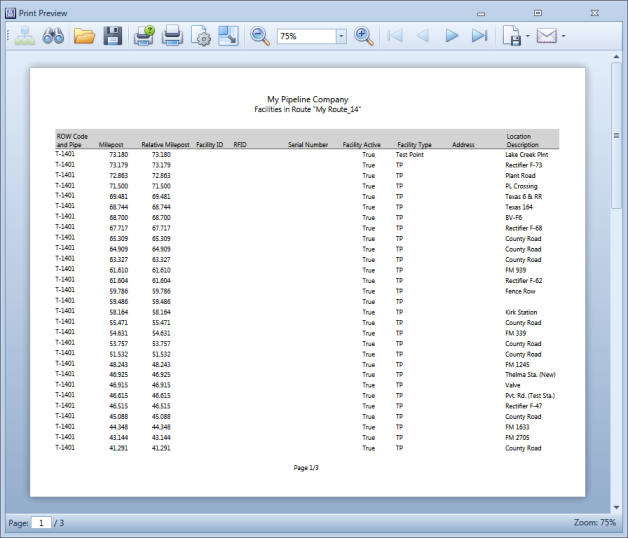

Figure 8-54. Print Preview
